IMU configuration

../../../_images/imu.png

Requirements

  • A Windows PC

  • The IMU Sensor

  • A USB-A to USB-C cable

Configuration

  1. Connect the IMU to your PC

  2. Download and start WitMotion PC Software

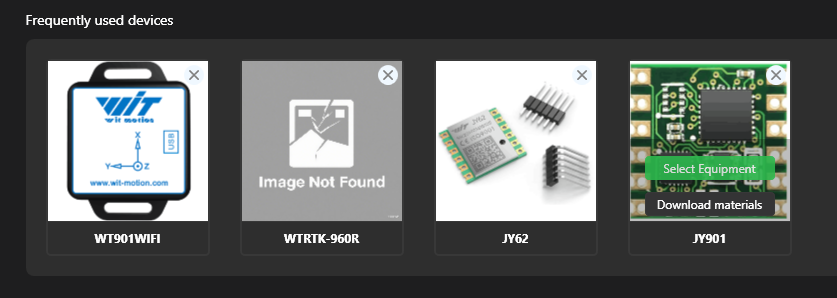

  3. Select the JY901 device in the “Frequently used devices” section

../../../_images/image1.bmp

  1. Your device should appear on the left

../../../_images/image2.bmp

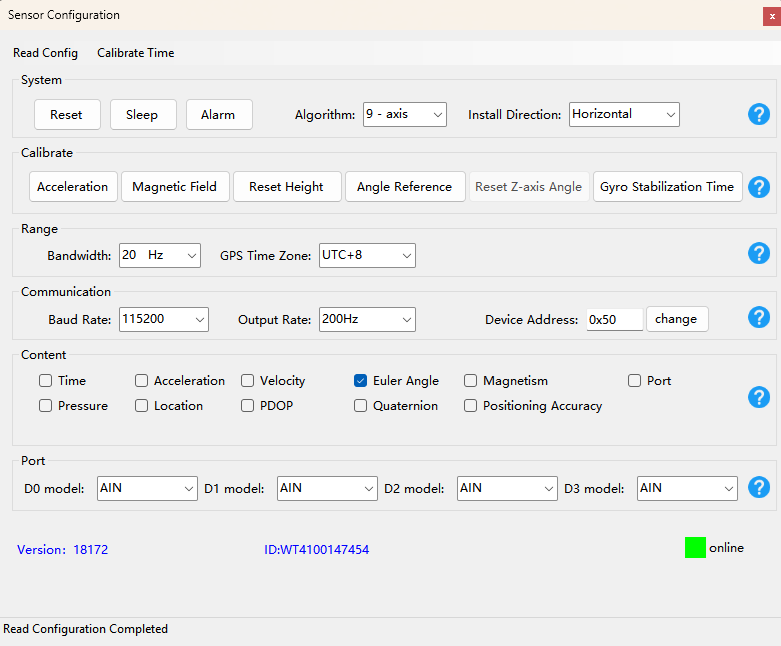

  1. Open the config menu and configure your device as follows :

../../../_images/image3.bmp
